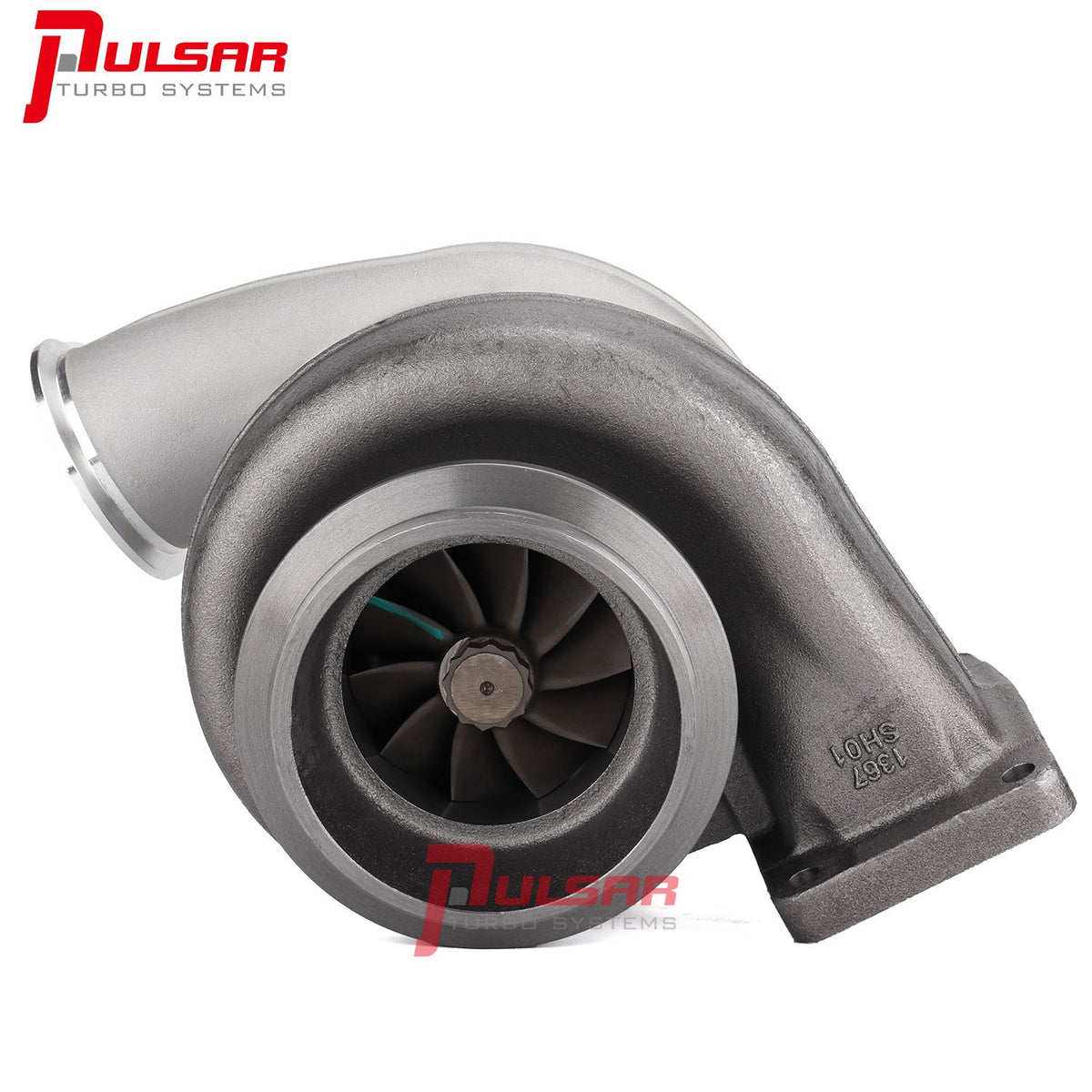

Pulsar Billet S488 Turbo with 96mm Turbine wheel
Pulsar Billet S488 Turbo with 96mm Turbine wheel
Pulsar Billet S488 Turbo with 96mm Turbine wheel is a universal turbocharger for a custom installation. Its supplier-stated power rating is 750-1400 hp (supplier-stated range). Discuss your BMW build and supporting hardware with M LAB by Boost & Tune before ordering; this is not a direct-fit BMW replacement.
Technical specification
| Power rating | 750-1400 hp (supplier-stated range) |
|---|---|
| Compressor Wheel | 88*117mm |
| Turbine Wheel | 96*88mm |
| Compressor Inlet | 5″ Hose |
| Compressor Outlet | V-Band |
| Turbine Inlet | T6 or T4 |
| Turbine Outlet | 5.75″ Marmon(T6) or 4″ V-Band(T4) |
| Oil Feed | 1/4 NPT |
| Oil Drain | Std T6 Drain Flange |
Construction and features
- 7+7 blades 88*117mm billet compressor wheel with extended tip technology for the ultimate in aerodynamics
- S400 96*88mm Inconel 713 turbine wheel for high-temperature operation
Choose your configuration
- Turbine housing: T4 1.25; T6 1.32 A/R; T6 1.58 A/R.
- 4-inch outlet flange and clamp: No; Yes.
- 5-inch outlet flange and clamp: No; Yes 5"; Yes 5" to 4".
Only the listed combinations are offered. The product price is for the selected turbo configuration; workshop installation, fabrication and calibration are not included.
What is supplied
One complete turbocharger in the selected configuration. A complete turbocharger is not a complete vehicle conversion kit. The available selections exclude configurations without a compressor or turbine housing.
- Outlet flange and clamp kits are optional. With the relevant selection set to No, that kit is excluded. A Yes selection includes the chosen kit in the displayed configuration price.
- The listed T4 configurations offer the 4-inch outlet kit. The listed T6 configurations offer the 5-inch or 5-inch-to-4-inch outlet kit. Choose only the combinations shown in the dropdowns; the different outlet kits are not automatically supplied together.
BMW custom-installation planning
Universal does not mean bolt-on. Check the manifold flange, turbine housing A/R, wastegate arrangement, compressor inlet and outlet, oil supply and drain, applicable water connections, engine-bay clearance, intake and exhaust fabrication, supporting fuel system and ECU calibration. No BMW chassis or engine fitment is claimed for this universal product.
The supplier rating is a turbo sizing reference, not a guaranteed engine or wheel-power result. Output depends on the engine, fuel, boost, supporting components and calibration. Confirm suitability and applicable road-use requirements for the finished vehicle.
M LAB workshop support
Contact M LAB by Boost & Tune in Melbourne for configuration review and a separate installation or tuning quotation. Confirm supply availability and dispatch timing for the exact configuration before ordering.
Browse Pulsar turbochargers · Discuss your build with M LAB
Delivery and lead time
Pulsar Turbos Australia dispatches stocked items within 48 hours after payment verification, excluding weekends. Its standard delivery estimate is 4–6 business days, including dispatch. Confirm supplier availability for your selected configuration before ordering.
PROFESSIONAL FITTING AVAILABLE
Planning a custom turbo installation?
Discuss the turbo configuration, supporting components, fabrication and calibration requirements with M LAB before ordering. Installation and tuning are quoted separately.
Product: Pulsar Billet S488 Turbo with 96mm Turbine wheel
Workshop installation in Albion, Victoria
Custom-build suitability
Universal turbo - custom installation
Custom-build component - not a bolt-on BMW replacement.
The vehicle finder uses engine cylinder count and the turbo power rating to show custom-build options. This is not a fitment guarantee or a promise of engine output.
Recorded supplier rating: 750-1400 hp (supplier-stated range)
No direct-fit BMW application is claimed. Confirm the exact turbo configuration, rotation, flanges, wastegate, oil and water connections, clearance and supporting fabrication with M LAB.
