JDY Performance STG1 BMW S58 3.0TG8X Pistons by Diamond

JDY Stage 1 ?Pistons for BMW S58 3.0T M2 M3 M4 G8X

The JDY Stage 1 and Stage 2 Pistons are high-performance upgrades designed specifically for the BMW S58 engine platform. These pistons are engineered to handle extreme power outputs while offering enhanced durability and efficiency for high-performance and racing applications. Available in stock bore size (84mm) with a 9.2:1 compression ratio, they deliver outstanding performance and reliability under the most demanding conditions.

Key Features:

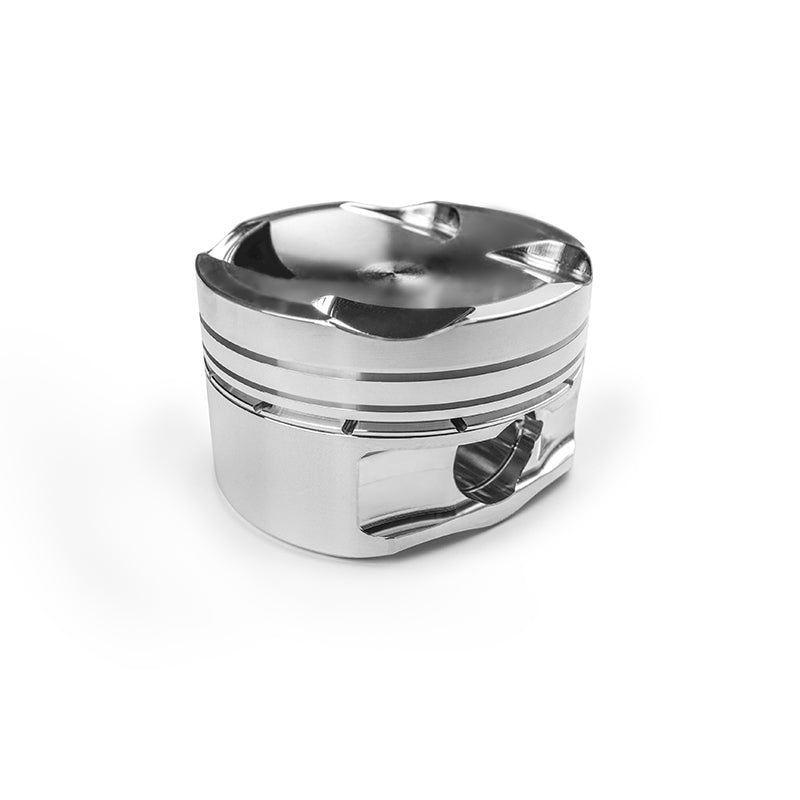

1. Piston Design:

   • Stock Bore Size: 84mm.
   • Compression Ratio: 9.2:1.
   • Material: Billet 2618 alloy for high strength and lightweight performance.
   • Available Options: Stage 2+pistons ( 1800+ HP).

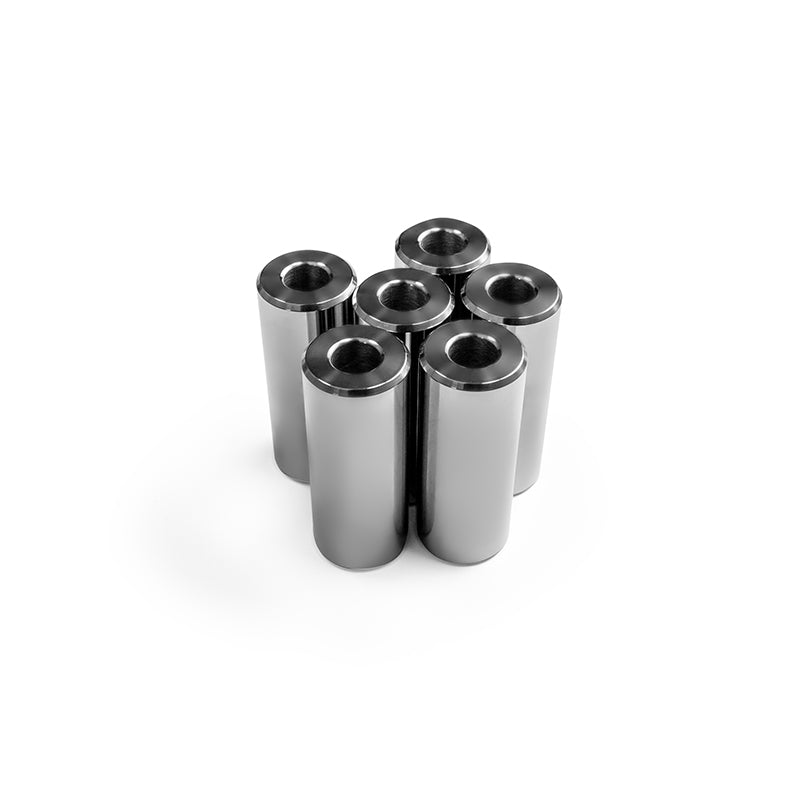

2. Wrist Pins:

   • Material: H13 super hard alloy.
   • Dimensions: 23mm diameter, 0.225-inch pin wall thickness.

3. Piston Rings:

   • ?equipped with Total Seal piston rings, which are thicker than OEM rings for better sealing, improved oil control, and enhanced resistance to higher combustion pressures.

4. Groove Re-Design:

   • The piston ring grooves have been re-engineered for better heat management and durability, minimizing the risk of ring flutter and improving overall performance. Optimized groove depth ensures reliable sealing while accounting for thermal expansion under high-stress conditions.

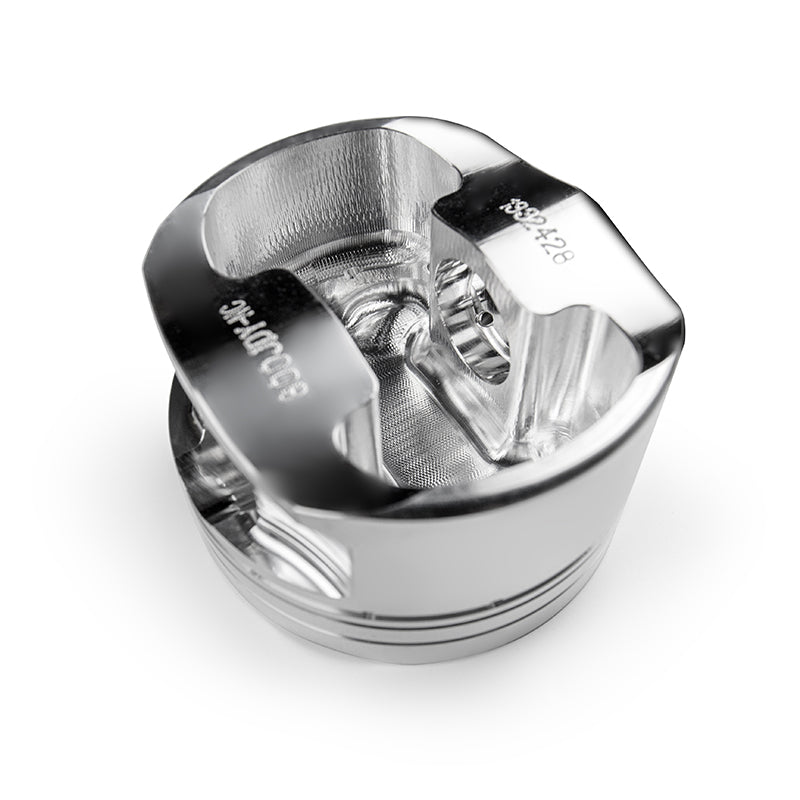

5. Valve Pocket Design:

   • Custom valve pocket grooves are designed to accommodate Kelford stage 1, 2, and 3 camshafts, allowing for better volumetric efficiency and greater valve lift without interference.

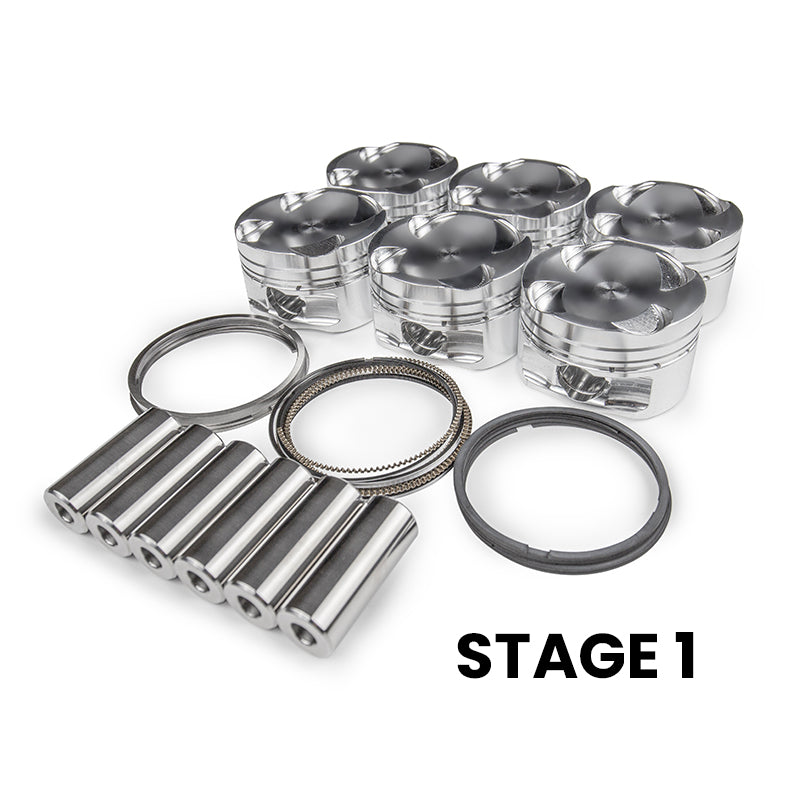

Stage 1 Pistons:

• Surface Finish: Standard Billet 2618 finish.
• Ideal for builds up to 1500+ horsepower.
• Durable and cost-effective solution for moderate high-performance applications.

Technical Specifications:

• Finished Bore Size: 3.307 inches
• Compression Ratio: 9.2:1
• Wrist Pin Diameter: 0.905 inches
• Wrist Pin Length: 2.250 inches

These pistons are engineered for compatibility with Kelford stage 3 camshafts, which allow for more valve lift, requiring deeper valve pockets that JDY has specifically designed.

Why Choose JDY Pistons?

JDY¡¯s Stage 1 piston kits are meticulously crafted for enthusiasts and professionals aiming to push the limits of their BMW S58 engines. JDY¡¯s pistons provide the durability, power, and performance needed for success on the street or track.
