Diamond Forged Piston Kit — BMW S54B32 3.2L

$2,222.00

Bore Size 87.00 mm 87.50 mm

Crown and Nominal Ratio -17.50 cc / 9.90:1 nominal -17.50 cc / 10.00:1 nominal -21.00 cc / 9.50:1 nominal

Gudgeon Pin Standard G-series H13 upgrade

Diamond Forged Piston Kit — BMW S54B32 3.2L

DIAMOND PISTONS · SPECIAL ORDER

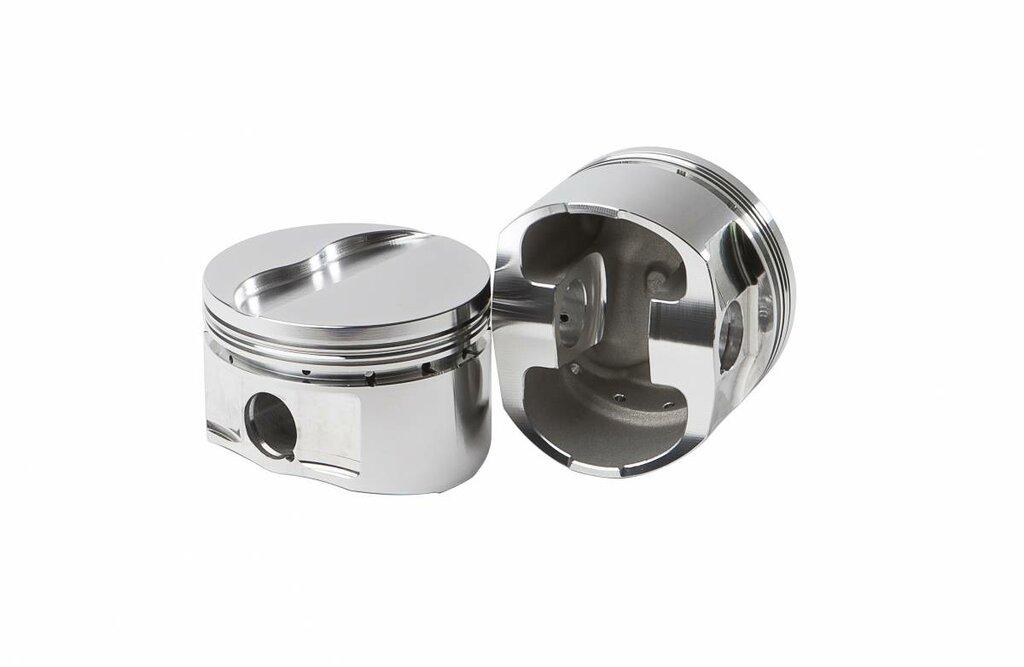

BMW S54B32 3.2L forged piston kit

Build your BMW S54B32 3.2L rotating assembly around a Diamond 6-piston forged kit. Specify the finished bore, crown volume and gudgeon pins to suit your measured engine, fuel and intended use.

Made to order. Allow approximately 5–6 weeks for delivery, pending Australian customs processing time. Manufacturing schedules, international freight and customs clearance may extend this estimate.

Precision in the details

2618 forged aluminium with a full-round forging profile.

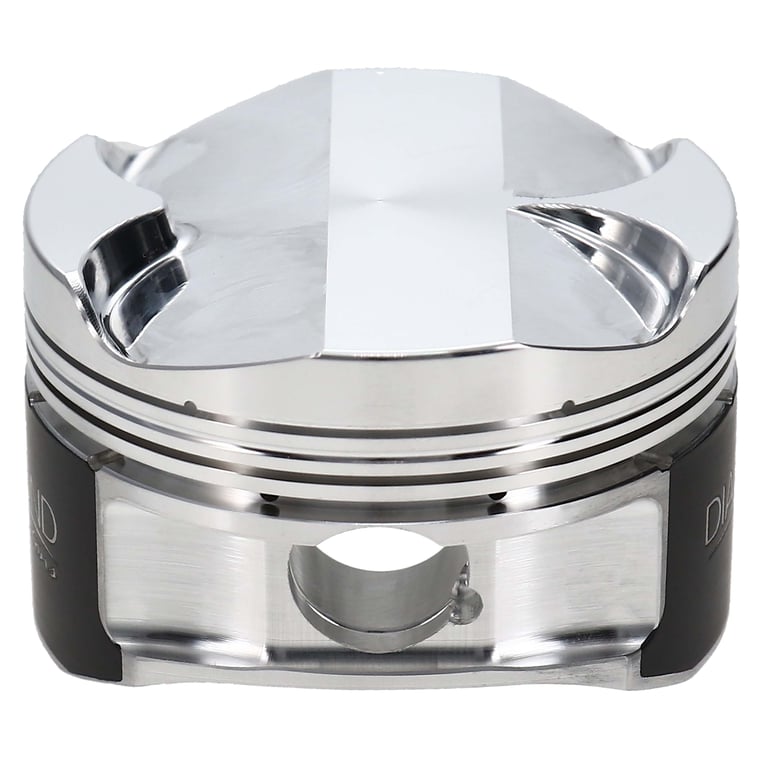

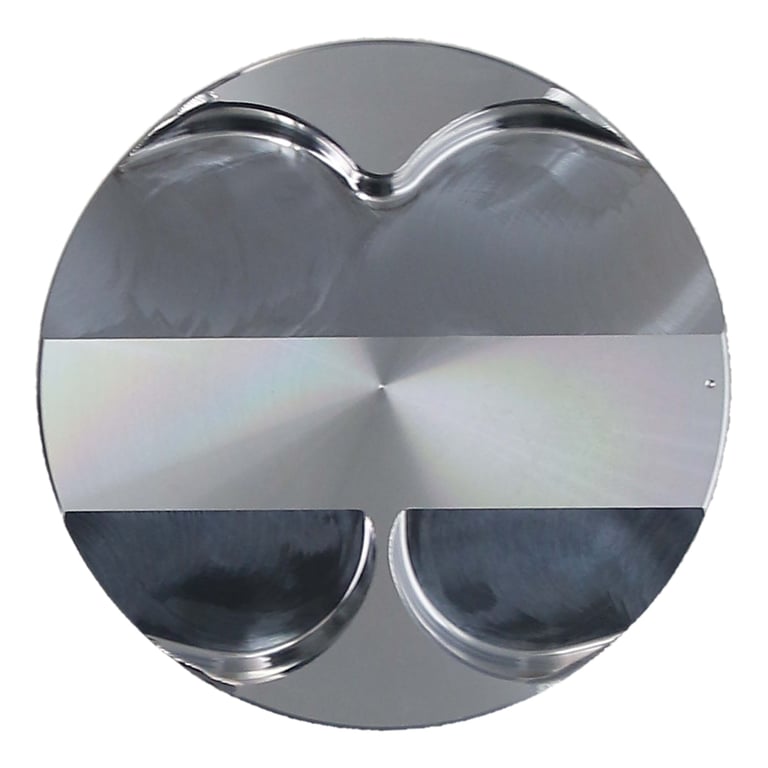

3D-machined crowns, offset pins, moly-coated skirts and side gas ports.
Enlarged valve pockets accommodate larger-than-standard valves. Clearance must be checked with the actual heads and camshafts.
The listed 1.0 mm / 1.2 mm / 2.8 mm ring set, gudgeon pins and retainers are included.
Top compression ring positioned 0.365 in below the crown.

What your kit includes

6 forged pistons, the specified ring set, gudgeon pins and retainers. Oil-rail supports are supplied where indicated in the exact kit table.

Choose the standard gudgeon-pin kit or the H13 upgrade in the selector. Part numbers ending in -H identify the upgraded pin kit; the displayed price covers the complete piston kit with that pin specification.

Build dimensions

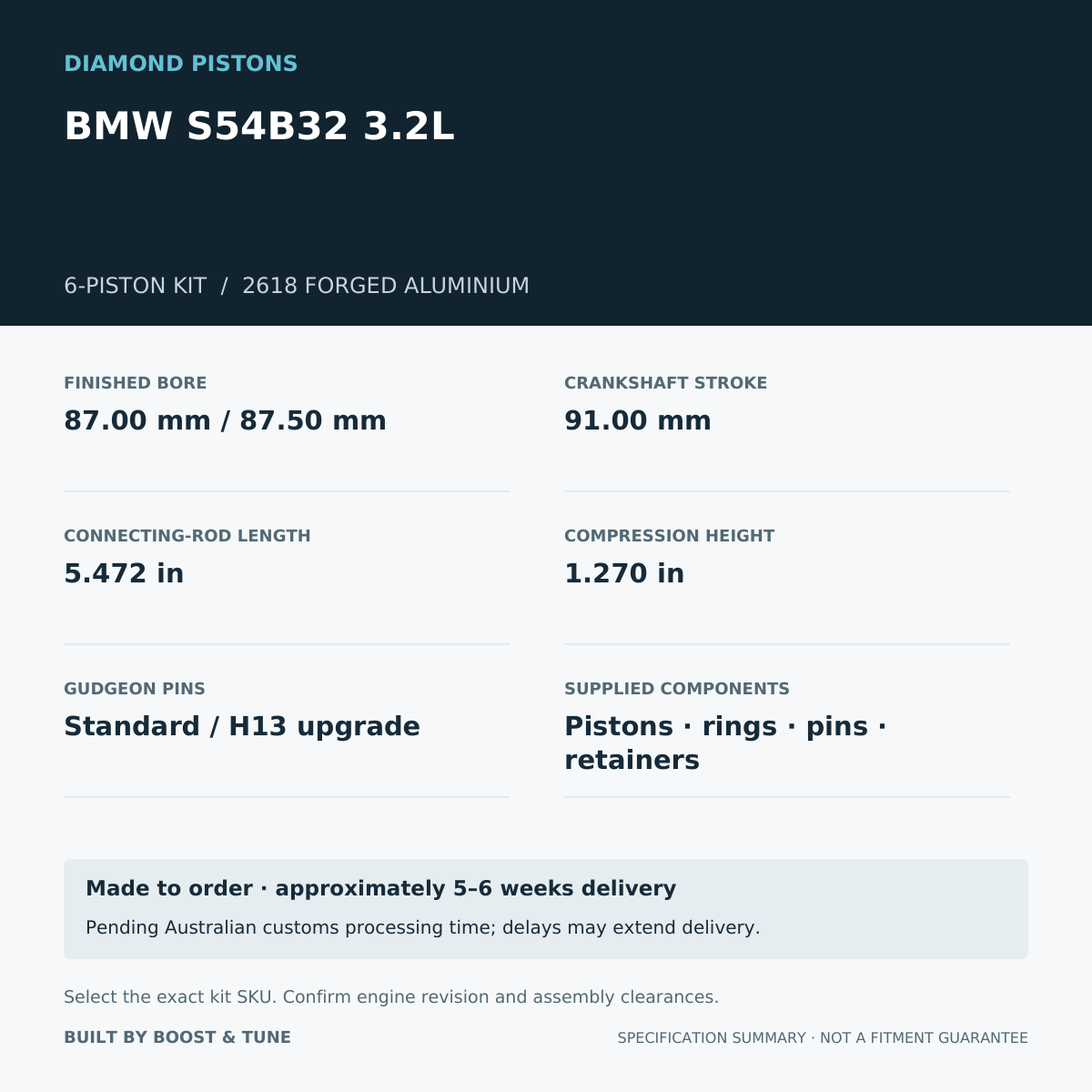

Piston Quantity	6
Compression Height	1.270 IN
Stroke	91.00 MM
Rod Length	5.472 IN
Ring Set Thickness	1.00 MM x 1.20 MM x 2.80 MM
Forging Type	Full Round

Engineering reference: rings, pins and valve pockets

Ring sizes are listed as top / second / oil ring. Check pin diameter and length against your connecting-rod small end. Valve-pocket depths are catalogue dimensions; your engine builder must check piston-to-valve clearance with the actual cylinder heads, camshafts and cam timing.

Kit SKU	Ring package	Pin diameter	Pin length	Valve-pocket depth: intake / exhaust
83092-6	1.00 mm / 1.20 mm / 2.80 mm	0.8267 in	2.250 in	0.280 in / 0.225 in
83093-6	1.00 mm / 1.20 mm / 2.80 mm	0.8267 in	2.250 in	0.280 in / 0.225 in
83094-6	1.00 mm / 1.20 mm / 2.80 mm	0.8267 in	2.250 in	0.280 in / 0.225 in
83095-6	1.00 mm / 1.20 mm / 2.80 mm	0.8267 in	2.250 in	0.280 in / 0.225 in
83092-6-H	1.00 mm / 1.20 mm / 2.80 mm	0.8267 in	2.250 in	0.280 in / 0.225 in
83093-6-H	1.00 mm / 1.20 mm / 2.80 mm	0.8267 in	2.250 in	0.280 in / 0.225 in
83094-6-H	1.00 mm / 1.20 mm / 2.80 mm	0.8267 in	2.250 in	0.280 in / 0.225 in
83095-6-H	1.00 mm / 1.20 mm / 2.80 mm	0.8267 in	2.250 in	0.280 in / 0.225 in

A dimension marked “Not published” needs confirmation with M Lab before ordering. Catalogue dimensions do not specify running clearance or ring end gap; use the instructions supplied with your exact kit.

Fitment and engine preparation

For the S54B32 engine. Nominal ratios depend on the measured head, deck and head gasket.

Catalogue bores are finished cylinder-bore sizes. The finished compression ratio depends on chamber volume, deck clearance and compressed head-gasket thickness. Have your engine builder verify piston-to-wall clearance, ring gaps, pin fit and piston-to-valve clearance using the supplied Diamond instructions before machining or assembly.

View kit part numbers, bore sizes and supplied components

Kit SKU	Bore	Crown volume	Ratio	Included pin	Ring set	Retainer	Oil-rail supports
83094-6	87.00 MM	-21.00 CC	9.50:1 nominal	G82672250180C	09513425	015128-12	No
83094-6-H	87.00 MM	-21.00 CC	9.50:1 nominal	H82672250225C	09513425	015128-12	No
83092-6	87.00 MM	-17.50 CC	9.90:1 nominal	G82672250180C	09513425	015128-12	No
83095-6	87.50 MM	-21.00 CC	9.50:1 nominal	G82672250180C	09523445	015128-12	No
83093-6	87.50 MM	-17.50 CC	10.00:1 nominal	G82672250180C	09523445	015128-12	No
83092-6-H	87.00 MM	-17.50 CC	9.90:1 nominal	H82672250225C	09513425	015128-12	No
83093-6-H	87.50 MM	-17.50 CC	10.00:1 nominal	H82672250225C	09523445	015128-12	No
83095-6-H	87.50 MM	-21.00 CC	9.50:1 nominal	H82672250225C	09523445	015128-12	No

Select the finished bore first, then a matching crown and nominal compression ratio, followed by an available gudgeon-pin specification. Pin choices depend on the selected bore and crown. Compression ratios are nominal catalogue figures; the final ratio depends on the measured chamber, deck and gasket volumes.

Made to order · delivery

Allow approximately 5–6 weeks for delivery, pending Australian customs processing time. Manufacturing schedules, international freight and customs clearance may extend this estimate. Contact M Lab before ordering for a build with a fixed deadline.

Plan your build with M Lab

M Lab by Boost & Tune can help select a specification for your fuel, boost and intended use. Machining, engine assembly, connecting rods and tuning are purchased separately.

Browse related BMW S54B32 3.2L engine parts.

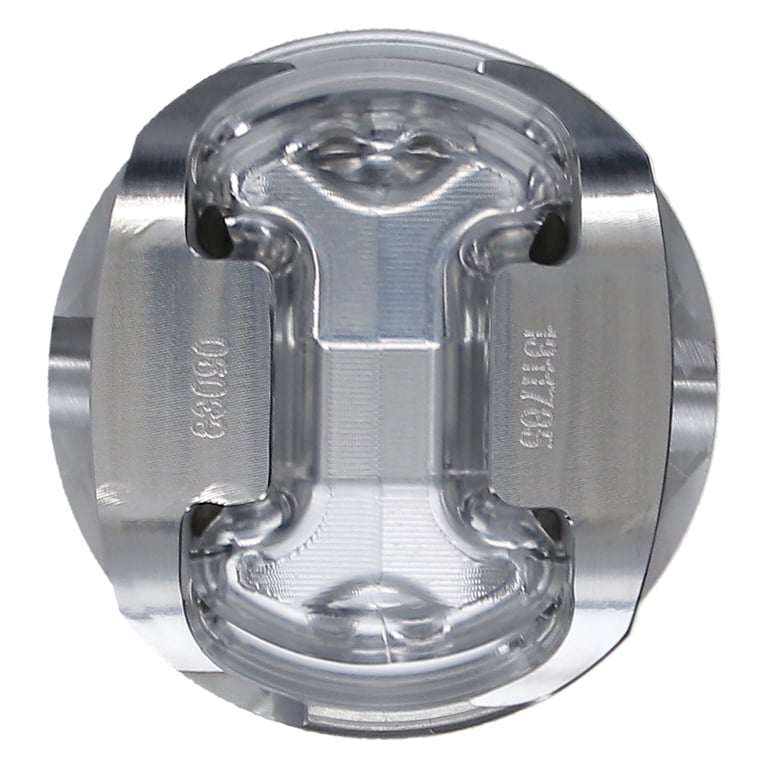

Photography shows a representative Diamond piston design. Crown shape, valve pockets, skirt finish and supplied components vary with the selected part number.

M Lab BMW workshop support

Discuss your BMW application, component selection and installation requirements with M Lab by Boost & Tune in Melbourne. Confirm fitment and the supplied configuration before ordering.

Explore BMW engine parts

BMW vehicle compatibility Select a BMW to check this product.

Fitment basis: All BMW vehicles equipped with the listed engine family.

Engines: S54

View full year and variant fitment

S54
