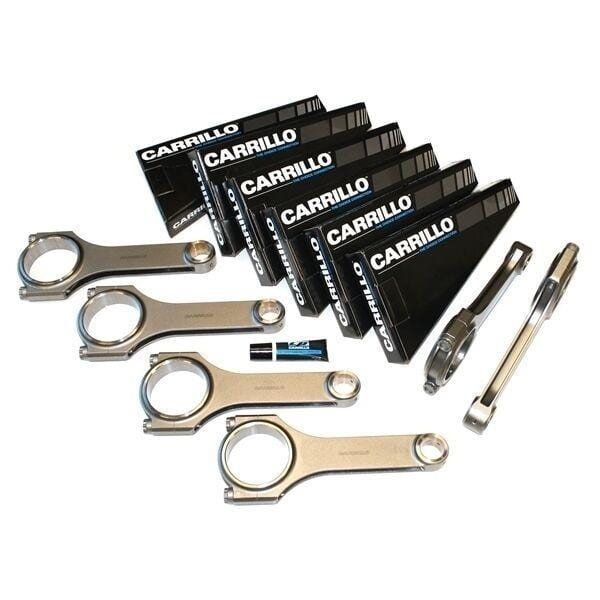

Carrillo Conrods for 8 cyl BMW S65B40 Pro-H 3/8 (BM-S65>-65540H)
Carrillo Conrods for 8 cyl BMW S65B40 Pro-H 3/8 (BM-S65>-65540H)
Carrillo Conrods for 8 cyl BMW S65B40 Pro-H 3/8 (BM-S65>-65540H)
|
Make |
BMW |
|
Model Engine Code |
S65B40 E90/91/92/93 M3 |
|
New Part Number |
SCR5166 |
|
Old Part Number |
BM-S65>-65540H |
|
Centre to Centre (in) |
5.54 |
|
Centre to Centre (mm) |
140.72 |
|
Style |
PRO-H |
|
Bolt Size |
3/8 |
|
Bolt Type |
WMC |
|
Pin Width (in) |
0.866 |
|
Pin Width (mm) |
22 |
|
Big End Width (in) |
0.725 |
|
Bigh End Width (mm) |
18.42 |
|
Big End Bore (in) |
2.2047 |
|
Big End Bore (mm) |
55.999 |
|
Pin Bore |
21mm |
|
Total/Rotate/Receip (grams) |
522 / 372 / 150 |
|
FN |
H |
|
Cylinders |
8 |
Manufactured from USA made oversized proprietary steel forgings to enable proper grain flow and guarantee removal of any surface inclusions, CP-Carrillo ensures strength and durability of each Carrillo rod. Consistent and reliable from the first point of precision manufacturing all the way to extreme uses in racing world, exclusive Carrillo H beam and Pro (S)A designs offer the highest strength-to-weight ratio; Custom designed fasteners; 100 traceability; multi-step final inspection; CP-Carrillo moly based fastener lubrication included.
Engine build fitment
S65B40. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.
Installation and M Lab workshop support
Confirm centre-to-centre length, journal dimensions, pin diameter and bolt clearance. Use the fastener manufacturer’s instructions for lubricant, tightening and stretch measurements.
M Lab by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
M Lab BMW workshop support
Discuss your BMW application, component selection and installation requirements with M Lab by Boost & Tune in Melbourne. Confirm fitment and the supplied configuration before ordering.
Fitment basis: All BMW vehicles equipped with the listed engine family.
Engines: S65
