AST 5300 Coilovers - BMW E90 / E92 M3
AST 5300 Coilovers - BMW E90 / E92 M3

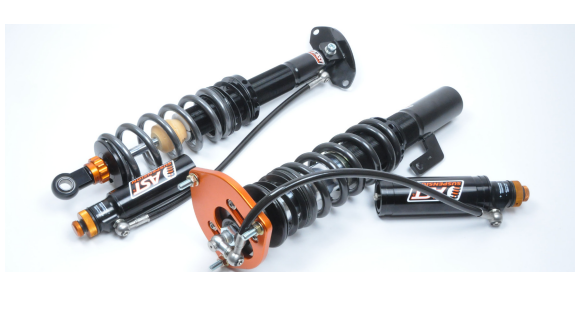

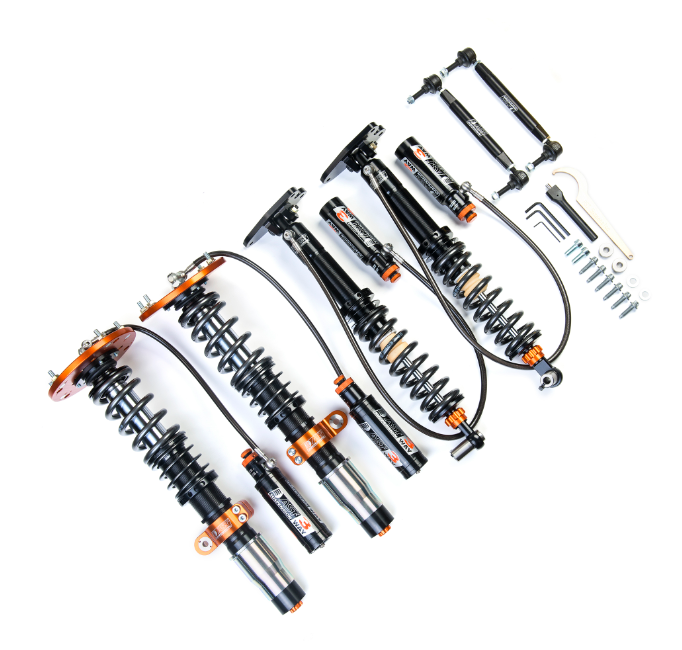

AST 5300 Coilovers - BMW E90 / E92 M3 is a vehicle-specific AST 5300 competition-oriented suspension package for BMW E90 M3 Sedan and BMW E92 M3 Coupe. The 5300 provides independent rebound, low-speed compression and high-speed compression adjustment for detailed chassis tuning.
Key features
- 3-way independently adjustable damping

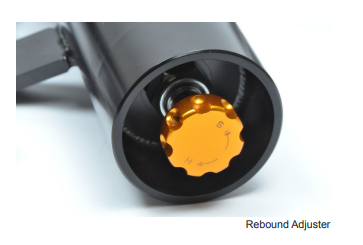

- 12-position rebound adjustment
- 14-position low-speed compression adjustment
- 12-position high-speed compression adjustment
- Remote reservoirs for heat control and increased fluid capacity
- Inverted strut design and high-strength damper architecture

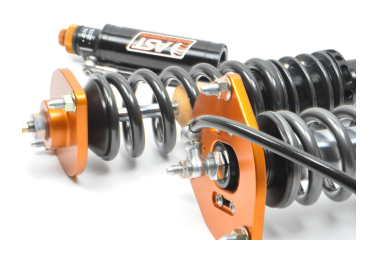

- AST motorsport top mounts for camber control
- True rear coilover configuration on applicable M-car kits
- Fully ride-height adjustable, serviceable and rebuildable
Configuration: Choose the standard kit or the version supplied with the KW EDC Cancellation Kit.
Vehicle fitment: BMW E90 M3 Sedan and BMW E92 M3 Coupe.
EDC note: Vehicles fitted with BMW Electronic Damper Control require the appropriate cancellation-kit option where offered.
Lead time: Made to order — allow 3–5 weeks.
Professional installation, corner weighting and a performance wheel alignment are recommended.
Supplier technical details
- Damper adjustment range: 12 clicks independent rebound , 14 clicks independent low speed compression, 12 clicks independent high speed compression.
- Single-tube damper architecture.
- Separate reservoirs increase fluid capacity and support heat control.
- The dampers can be serviced and rebuilt.
- Supplier revalving is available for a different damping specification.
- The described package includes adjustable camber top mounts.
Chassis: E90, E92
Engines: S65
Drivetrain: RWD
Production years: 2007-2013
View compatible BMW ranges
M3, BMW E90 M3, BMW E92 M3
